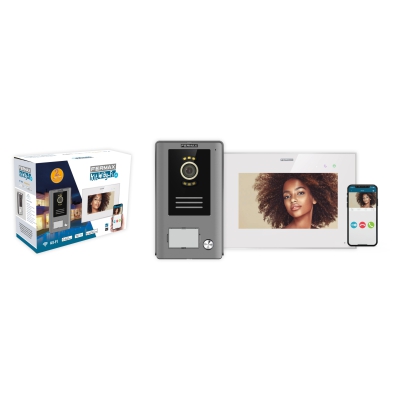

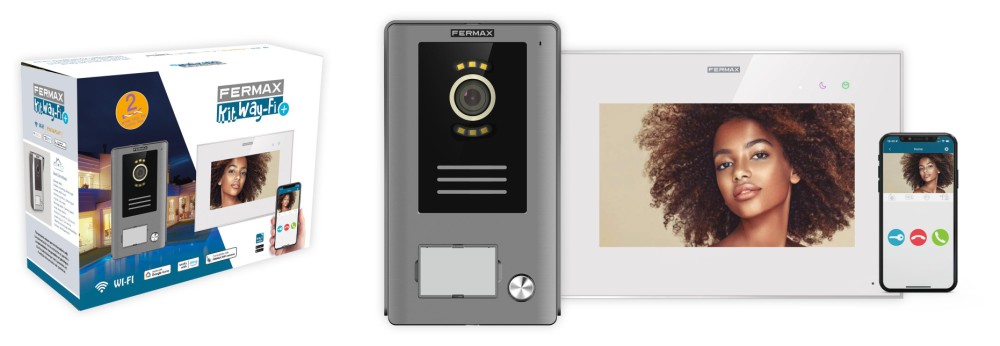

1WAY-FI PLUS 7" VIDEO INTERCOM KIT

Easter

Our office is now closed for the Easter Holidays. Any orders placed will be dispatched from Tuesday 7th April onwards - Happy Easter

1WAY-FI PLUS 7" VIDEO INTERCOM KIT

Quickcode: 10361

Available

£393.43 (£472.12 inc VAT)

Quantity:

Shipping:

5-7 working days

Manufacturer: Fermax
Part number: 1571

You can place an order for this product, and typically, it will take 5-7 working days to be ready for dispatch.

Our sales team will provide you with a confirmed dispatch date shortly after receiving the order.

Single-family video kit.Surface panel and hands-free monitor 7" touch screen.2 non-polarized wire installation.Automatic/manual capture of photos/videos.Call diverting to mobile.Compatible with Alexa and Google Home.Pre-programmed (Plug&Play)

MAIN FEATURES

Installation with 2 non-polarized wires .
Video camera with high image quality , even at night.
Compatible with Smart speakers and screens: ALEXA and GOOGLE HOME , to receive call notifications on the speaker or smart screen and be able to speak, view the image and use voice commands to open the door . With GOOGLE HOME the door opening command only activates the main door.
Simple pairing process using QR Code .
Direct opening of the door from your mobile phone (via optional security code ), without the need for auto-on . Widget or shortcut option.
Capture and view photos/videos from the monitor or mobile.
Integration with FERMAX Wifi IP cameras ref. 9986 (viewing from monitor and mobile. Motion detection alarms).
Activation of additional function F1 from the monitor or the APP.
Call from APP to home (with listening mode option).
No user limit in APP .
Management of several WAY-FI PLUS kits (unlimited number of installations ) from the same mobile phone.
Compatible with iOS version 10 or higher and ANDROID version 6 or higher.
Intercommunication between monitors of the same home.
Door opening using QR codes .

Technical specifications

THE KIT CONSISTS OF:

1573 WAY-FI PLUS 1/L Outdoor panel with Visor: Panel dimensions with visor: 162x94x26 mm
1572 WAY-FI PLUS 7" Touchscreen Monitor with Integrated WiFi: Dimensions: 222x154x11.5mm.
1570 WAY-FI PLUS Power Supply.

OUTDOOR PANEL (Ref 1573):

Mounting: Surface. Rain visor included necessary for assembly.
IP/IK Grade: IP 44/IK 07
Material finish Zamak
Electric lock release activation: Yes (12 Vdc 250 mA output, terminals S+, S-). Timerable (1-10 s.)
Potential free relay for activation of 2nd door (garage): Yes. Configurable as Normally Open/Closed. Timerable (1-10 s.)
Hallway exit button connection: Yes. Activates the electric lock release or relay, selectable and timed (1-20s). Terminals PL, GND
Camera: CMOS, HD resolution. Wide angle (H=122º; V=63º). White LEDs (6) for camera lighting with light sensor activation.
Card holder and button set: Front removable card holder and call button, both with white LED backlighting. Backlight activation by light sensor.
Possibility of additional panels: Yes, one.
Speaker volume adjustment: Yes
Operating temperature: [-25ºC, +70ºC]
Maximum consumption of electric door opener: 250 mA during maintenance
Configuration via DIP-switch: Plate number and activation selection of exit button (electric door opener or garage relay)

MONITOR (Ref 1572):

Call Forwarding to Mobile: Unlimited mobile numbers can be paired. Choose whether the call rings simultaneously on the monitor and smartphone or first on the monitor and then on the smartphone (programmable delay time: 5-25s). Call diverting can also be disabled from the monitor.
Mounting: Surface-mounted (wall connector included).
Display: 7" capacitive touchscreen (16:9 widescreen format). Resolution: 1024 x 600 pixels. Wide viewing angle (IPS technology). Intuitive user interface compatible with swipe operations.
LEDs: White: Monitor Activated; Purple: Do Not Disturb Activated; Green: Pending Photos/Videos.
Conversation Mode: Hands-free.
Connections for Doorbell: Terminals GND, BELL.
Connections for Auxiliary Device Activation: Terminals GND, F1.
Date and Time: Time: 12/24-hour format; Date: configurable format. Can be set manually or synchronized from the internet.
Do Not Disturb Mode: Immediate and/or timed activation/deactivation for a specific time range during the day.
Photo Capture: Automatic (deactivated by default) and Manual. Stores up to 200 photos without a Micro SD card, or up to 5,000 with a Micro SD card (depending on SD card size). Photos on the monitor can be copied to the Micro SD card.
Video Capture: Automatic (deactivated by default) and Manual. Records up to 20 videos without a Micro SD card, or up to 5,000 with a Micro SD card. SD card size: 8-128 GB (not included in the kit). Videos are 15 seconds long.
Photo and Video Deletion: One by one, multiple selection, or all at once. Older files are deleted when storage limit is reached. Option to format the Micro SD card. Default deletion after 30 days.
Photo and Video Gallery (with date and time).
Auto-On: Displays the street view from the monitor, with the option to switch between plates/cameras.
Pedestrian Door Opening (Electric Door Opener): Activates 12V DC output. Programmable opening time (1-10s). • Garage Door Opening (Electromagnetic Door Opener): Activates a relay. Programmable opening time (1-10s).
Image Settings: Brightness.
Call and Conversation Volume Adjustment: Levels from 0 to 8.
Internal Intercom Function within the Dwelling: Only between monitors (not with smartphones). Option for individual or group calls. Maximum of 6 monitors per dwelling (1 Main and 5 Additional). • Menu Languages: 17.
Ring Tones: 16. Selectable for plate call, doorbell, intercom call, motion alarm, tamper, and app call.
Compatibility with Analog CCTV Cameras: No.
Compatibility with FERMAX IP Wifi CCTV Cameras (Ref. 9986): Supports up to 4 cameras per installation. Not compatible with other camera models.
Connections: Bus (B, B); Doorbell (GND, BELL); Auxiliary Activation (F1, GND). Micro SD card slot (8-128 GB).
Menu-Based Configuration, no DIP-switches.
Firmware Update via SD or OTA (internet).

Nota
Video and photos

Internal memory (without SD card) storage:

- Maximum capacity: 200 photos + 20 videos
  - 100 auto recording photos
  - 100 manually recording photos
  - 10 auto recording videos
  - 10 manually recording videos

External memory (SD card) storage:

Maximum capacity: 5.000 photos + 5.000 videos (depending on the SD size)
- 100 auto recording photos
- 4.900 manually recording photos
- 100 auto recording videos
- 4.900 manually recording videos

POWER SUPPLY (Ref. 1570):

Specifications: 100-240V AC, 2.5A (50-60Hz) / 32V DC, 3.5A. DIN rail mounting.

APP-SMARTPHONE:

App: Free. Compatible with iOS (10.0 or higher) and Android (6.0 or higher).
Operation: Wi-Fi and/or 3G/4G/5G.
Maximum Pairings per Installation: 1 administrator and an unlimited number of guests.
Maximum Installations per Smartphone: Unlimited.
Auto-On (Street View from the Monitor): Yes.
Differentiated Opening for Dwelling Door and Garage Door: Yes (via security code).
Photo Capture and Video Recording: Manual (storage on the smartphone only).
Viewing Photos and Videos Stored on the Monitor.
Conversation Mode: Hands-free.
Microphone Mute and Speaker Silence: Yes.
Display Mode: Adjustable (25 fps, 10 fps, still image + audio). Full-screen option.
Call Log: Yes (missed, received, with date and time information).
Compatible with ALEXA and Google Home.
