This is only the Adaptor, it does not include the lock

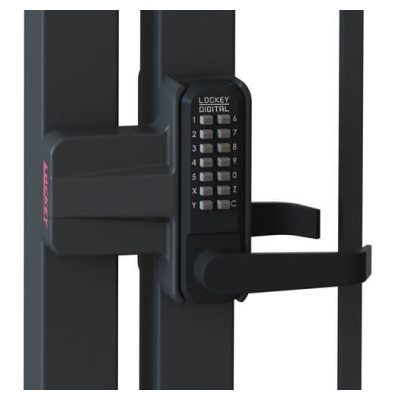

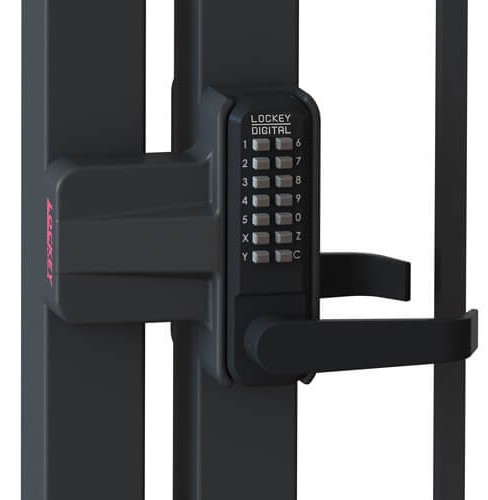

The Lockey 2835 adapter for Gates

Designed to easily attach keyless locks to your gate without extensive modification
and eliminates the need for gate boxes and any unnecessary welding.

– Works with gate to post gaps ranging from 10 mm to 38mm wide
– Fits gates 44 mm  to 127mm thick, no extension fittings needed
– Ideal for wooden, metal and vinyl gates

Dimensions & Specifications for the Lockey 2835 gate lock adapter

Dimensions: 129.54mm  x 142.24mm x 38mm
Gate Thickness: 44mm to 127 mm
Gate Gap: 10mm to 38 mm
Material: Glass-filled nylon outer housing and zinc alloy plate*
Color: Black
For Exterior & Interior Use
Weather Resistant
Patented
Lockey USA brand

Options for the Lockey 2835 gate lock adapter are the Lever Lock/2835 or knob version (sold separately):

Keypad: Single Combination, Double sided Combination Click here for Lockey 2835 digital door lock and click here for Lockey 2835 Double sided combination.
These locks come with passage function and hold back facility, either or both of these functions can be disconnected if not required

Reversible handing
One user code

*Advantages of Glass-Filled Nylon

Adding glass makes nylon substantially stronger, harder, and more rigid, while also having a higher creep resistance, better dimensional stability, and increased wear resistance than nylon on its own. Glass-filled nylon also allows for higher maximum service temperatures. Here are the primary benefits compared to standard, unfilled nylon:

• Considerably harder
• Superior tensile strength
• Greater stiffness
• Substantially less thermal expansion rate
• Increased stability when exposed to temperature fluctuation
• Lower creep rate
• Good fatigue strength
• High mechanical damping properties
• Ideal material for use in parts requiring high static loads in high temperatures
