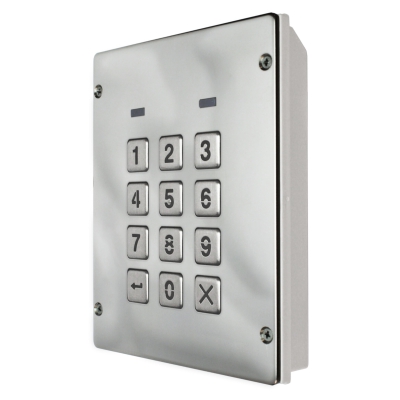

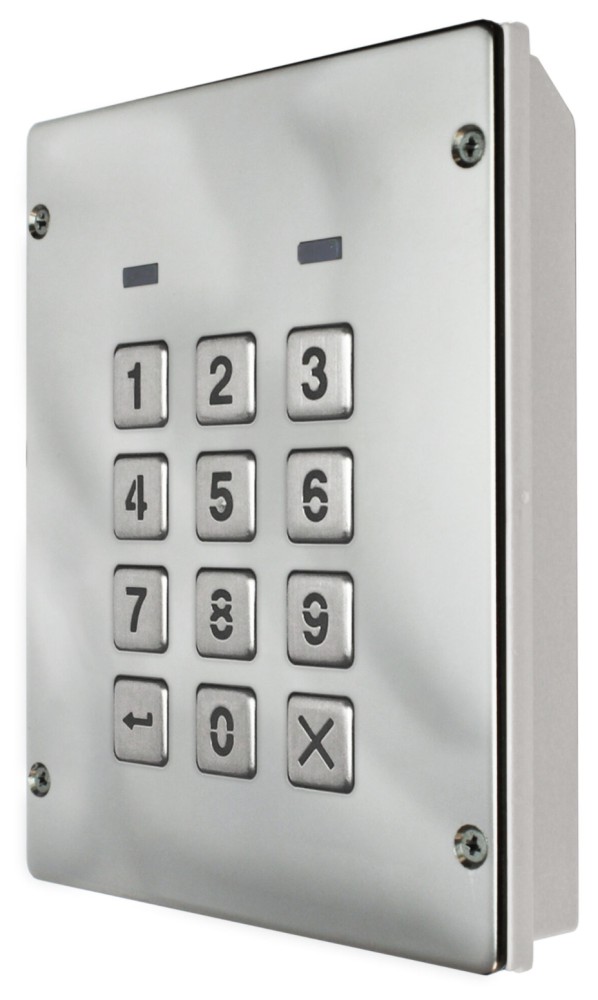

Videx 8000 Series Codelock Modules

8000 series codelock modules with blue backlit buttons which are able to operate as a standalone keypad or can be incorporated as part of an audio or video door entry system.

There are two optional codelocks available: the 8800BL keypad has 2 output relays and can be programmed with 2 access codes (1 code per relay). The 8900BL keypad also has 2 output relays, however can be programmed with up to 100 access codes which can be assigned to just one or both of the relays.

The relays for both keypads can be programmed from 1-99 seconds or set to 00 for latching. They also feature two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Codes can be between 4-8 digits in length.

The codelocks are available in a mirror stainless steel finish.

Features

• Blue backlit keypad buttons
• Modules are compatible with both surface & flush 8000 series back boxes
• User friendly programming menu with audible reassurance tones
• 4-8 digit programmable access codes
• Programmable relay times from 1 to 99 seconds or latching mode
• 2 programmable codes for the 8800BL
• 100 programmable codes for the 8900BL
