Securefast Electric Lock 12/24V DC/AC

Quickcode: 9163

 In Stock

£200.85 (£241.02 inc VAT)

2-3 working days

Manufacturer: Securefast
Part number: AML-300-SW

Payment Methods

Payment Methods

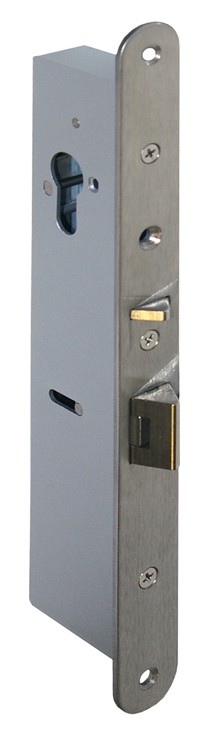

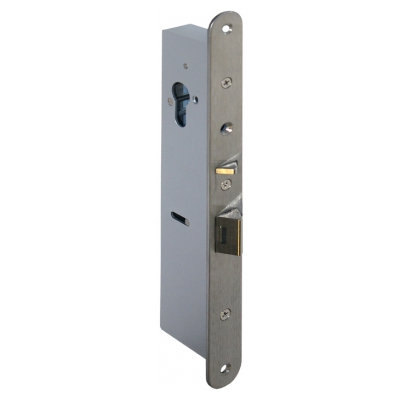

Securefast Electric Lock 12/24V DC/AC Fail Safe/Secure - Single/Double Action

  • High performance mortice locks for use with swing doors
  • Options for both double and single action doors
  • Brushed stainless steel finish
  • Lock monitoring
  • May be fitted to narrow style doors


The AML-300-SW has the option of a key override (cylinder not supplied) with the bolt deadlocking automatically when the door is closed.The lock has a robust stainless steel construction and offers smooth operation for both single and double action doors.The lock offers lock monitoring and may be fitted to narrow style doors, it also has a holding force of 2000lbs
Features & Benefits
* 2000lbs Holding Force
*Optional key/thumb turn override (Cylinder not supplied)
*Brushed stainless steel finish
*For use with double/single action doors
*Can be used with narrow frames
*Optional cylinders & key accessories are available
*Lock monitoring
*Reversible fail safe or fail secure
*Mounted vertically

Technical Specifications

Operating Voltage 12-24V DC/AC (AC Fail Secure Only)

Voltage Tolerance +10%

Current Draw 210mA/12V DC: 150mA/24V DC

Fail Safe/Secure Reversible

Operating Temperature 10-45 degree C

Humidity 0-95% Non condensing

Lock Bolt Sensor Output SPDT Rated 3A/125V AC

Solenoid Testing Tested 1,000,000 cycles

Backset 30mm

Net Weight 815g

Accessory single or Double Cyclinder
